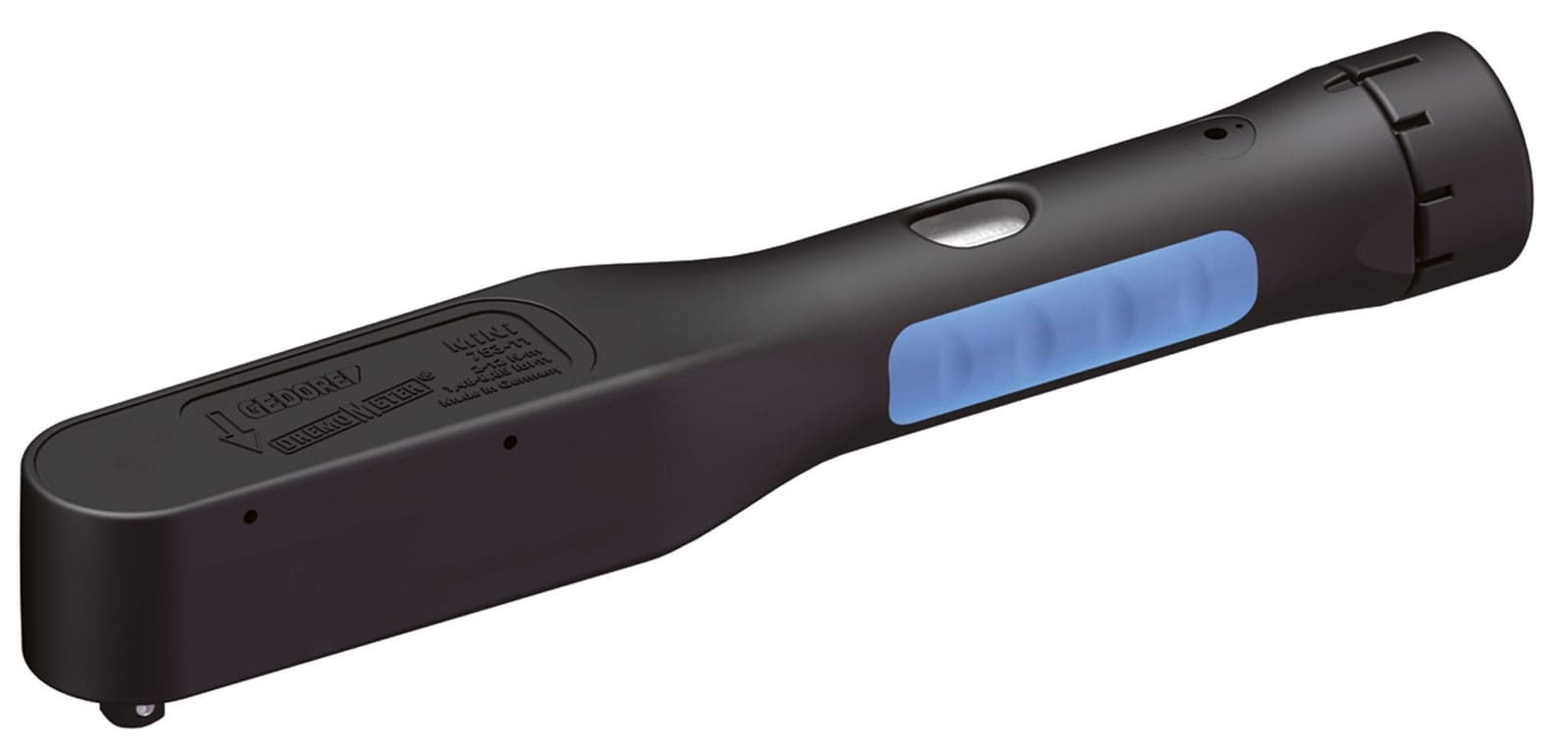

En liten momentnyckel med extrem precision! Från tyska Gedore.
2-12 Nm / 18-106 lbf in
Fäste: 1/4"
Vikt: 320g

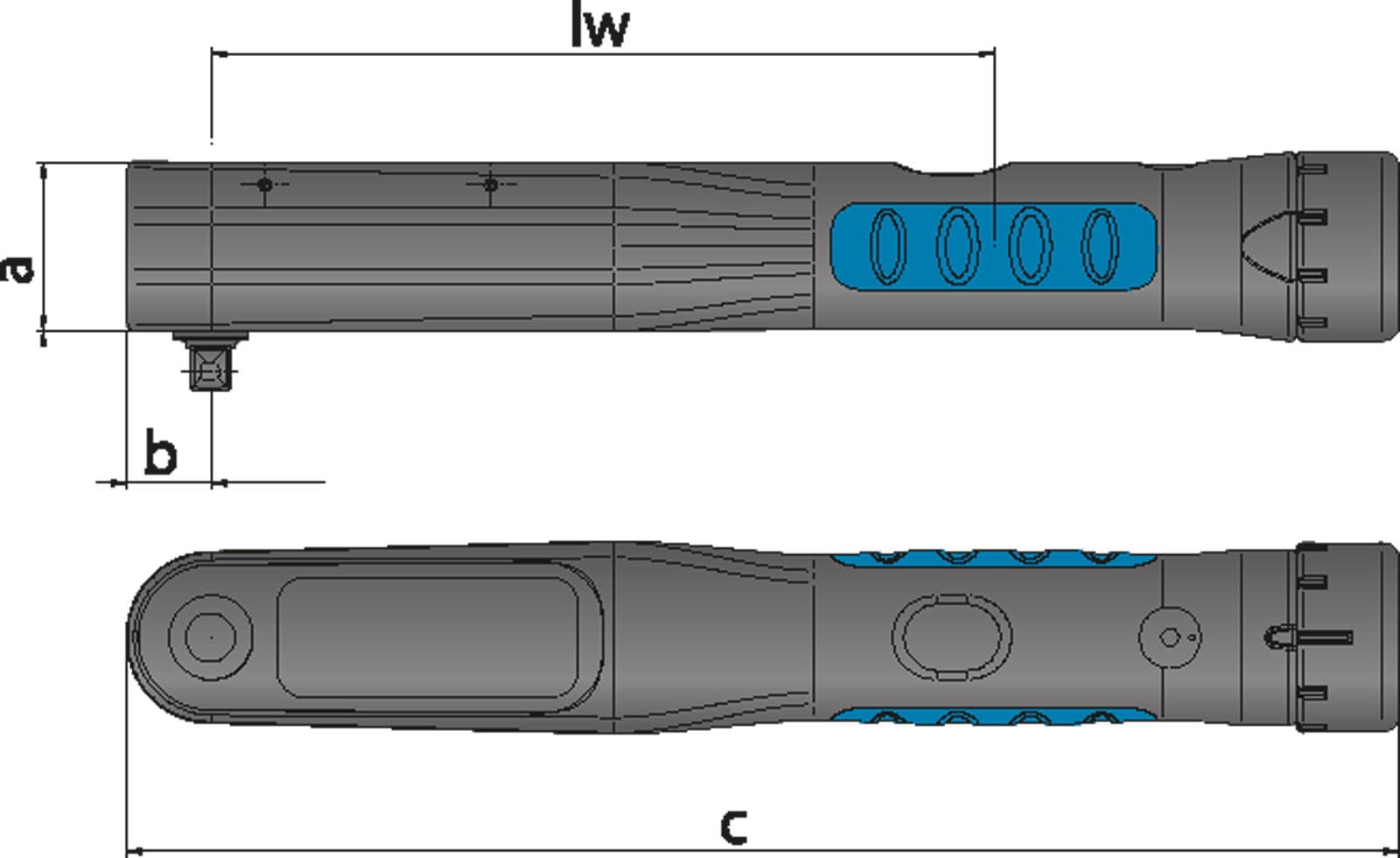

Storlek: 211x25mm
Modell: Gedore 753
OBS! Leverastiden på vissa Gedore produkter är c:a 4-6 varadgar längre än normallt.
Cntrolled screw tightening in the range 2 - 12 N·m
For use in almost all industrial manufacturing areas
Features:
Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3% tolerance of scale set torque. The specification of the standard (+/- 4%) is exceeded.
Torque wrench with 1/4" square drive with ball locking device DIN 3120 - A 6.3, similar to ISO 1174, for controlled clockwise tightening
Automatic short-path actuation with tactile impulse and audible signal
Lightweight plastic casing, made from high-grade, glass-fibre reinforced polyamide, with soft-grip handle
Dual scale with a scale graduation of 0.5 N·m and 5 lbf·in
Additional micrometer scale for setting interim values with N·m, graduations of 0.05 N·m
Window with a magnifying-glass effect
Locking button enables reliable locking of the torque setting
Scope of delivery:
Torque wrench type MINI
With certificate acc. to DIN EN ISO 6789:2003, traceable via in-house DKD laboratory to national standards
